Otsuka BoreLoupe Industrial Hole and Groove Inspection

View more images

Product Description

Otsuka BoreLoupe Industrial Hole and Groove Inspection

Illuminated, Lightbox Desk Magnifier with Interchangable Lenses

Ultra-High Quality, Amazing Flexibility,

Built-to Last

Superb Interchangable Lenses Producing Bright, Clear Images with Optional Polarisation and Anti-Reflection Filters (see below)

DUAL ILLUMINATED

Supplied with Pillar Stand over and bottom illuminated lightbox with extendable horizontal arm and to illuminated tiltable magnifier head

13cm diameter glass lens

2X to 15X with optional lenses (see below)

Total Length 340mm

Vertical Pillar: 230mm x 16mm diameter

Horizontal Arm: 140mm x 13mm diameter

Box Dimensions: 274Dx325Wx110Hmm

Illuminated area on lightbox: 210Dx330Wmm

Bright, long life, FCL 20W energy saver fluorescent ring lamps in head and base

Tiltable and Extendable Head

Weight 5Kg

Suitable for all useOtsuka BoreLoupe Industrial Hole and Groove Inspection

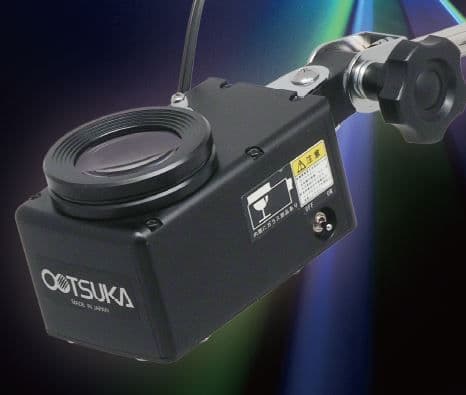

A product developed for the easy and effective inspection of the sides and bottom of of small holes, blind holes, bores and deep-channel grooves.

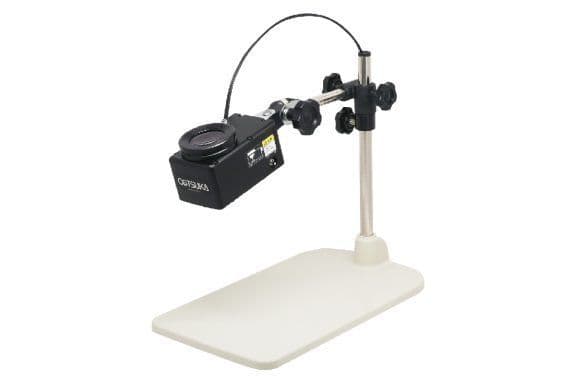

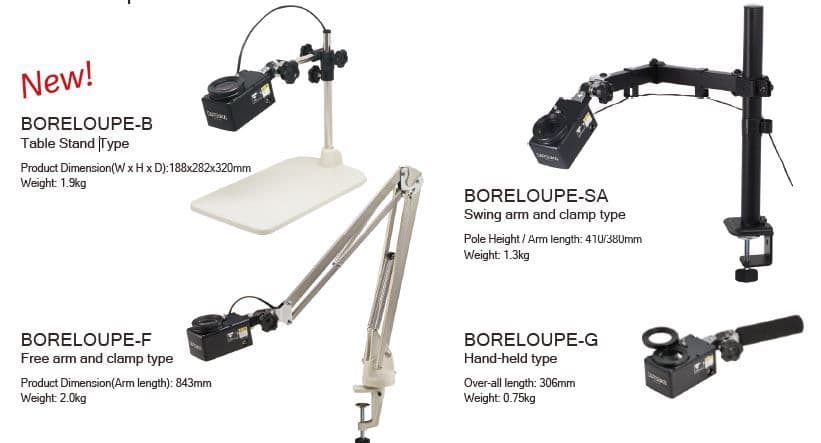

There are a range of versions each having a different type of arm or holder.
The unique BoreLoupe has an extremely easy to use design with flexibility and immediate installation.

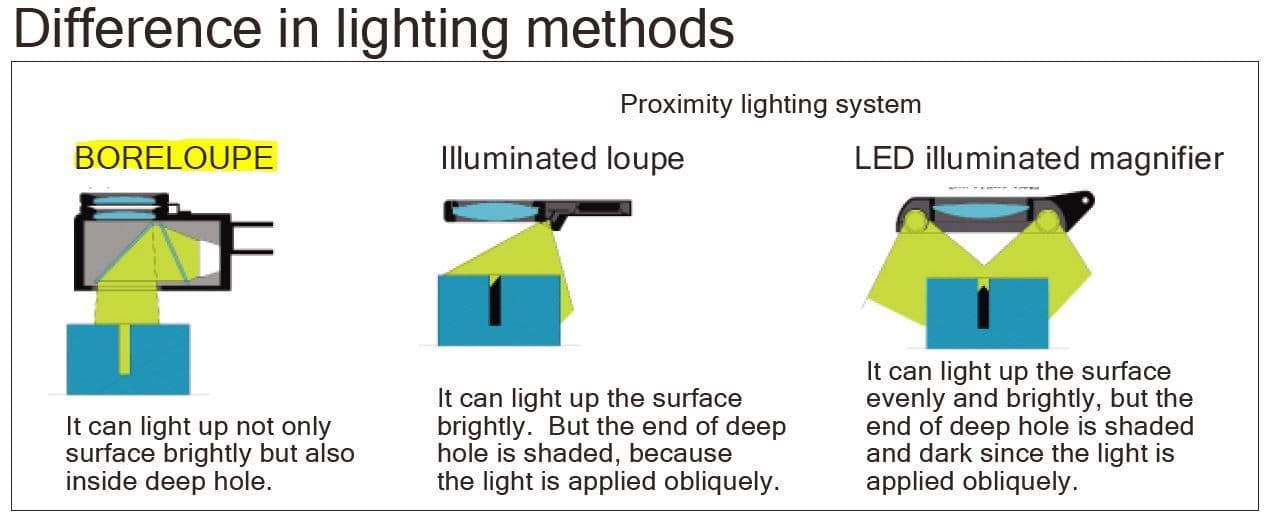

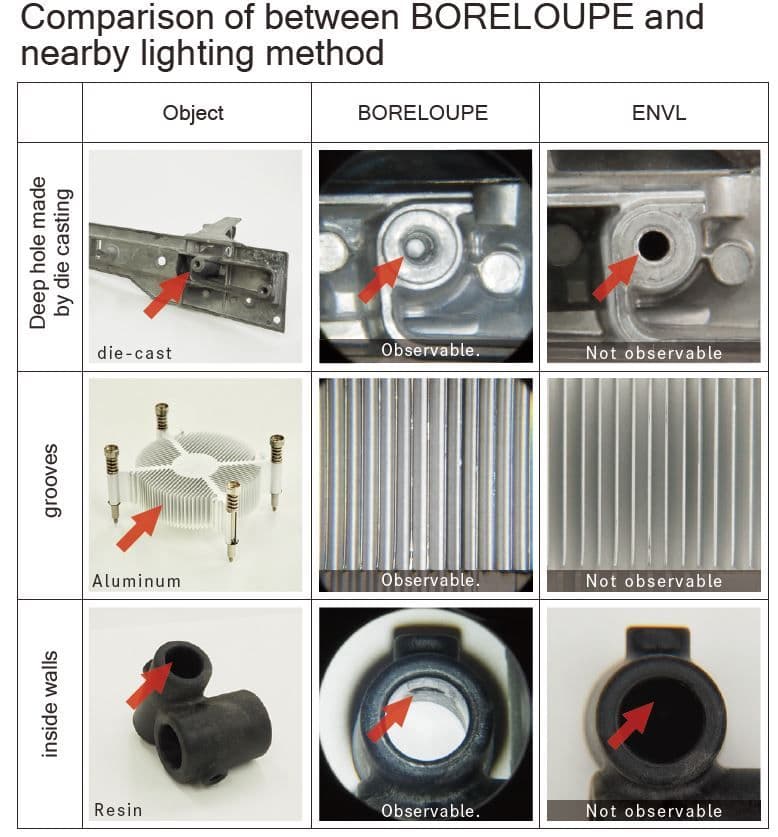

The design incorporates a coaxial lighting system so the illumination is in exactly the same direction as the magnifying optics and the observer's view, tin this way direct observation of the inside of holes and grooves are made fast and simple and it is very intuitive to use.

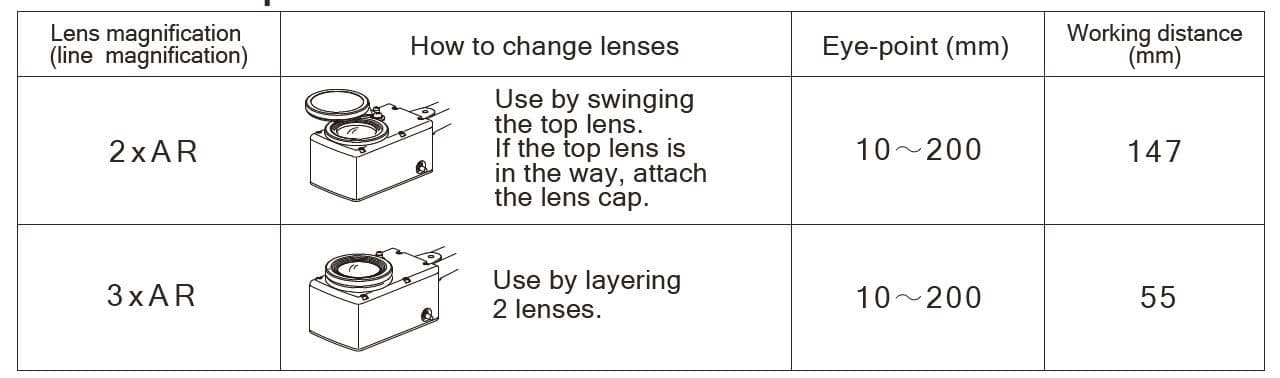

The switchable magnification lenses of 2x/3x are very high quality and illumination source is a bright LED

OPTIONS:
Polarising Filter for inspecting objects with high specular reflectivity
BORE Loupe-PUL” allows you to increase the magnification with a supplementary lens
Working Distance Extender WDE-B extends working distance for the inspection of the inside of deeper holes
All options are designed to be used with the 3x lens

Lens
Magnification	2x, 3x
Lens dimension (mm)	ɸ40
Lens Material	Optical glass
Working distance (mm)	2x/147, 3x/55
Lens Type	Fixed
AR (anti-reflection) Coated Lens	Not available
Lighting
Light source	LED
AC adapter input voltage	100～240V:50/60 Hz:Plug Type A
Power consumption	1.2 W
Dimming Function	Not available
Body
Product weight	2.0 Kg
Arm length	600 mm
Head Dimensions	112X68X70H (mm)
Possible clamping width (mm)	15～60
Operating temperature range	0℃ ～ 35℃
Dustproof and waterproof protection grade	IP30

Specifications

CO Verified

Yes

Handheld

YES

Lens Type

Optical Glass

Illuminated

Yes

Stand

Articulated Swing Arm on G-Clamp Pillar

Long Reach

Yes

Stand Type

Articulated Long Arm G-Clamp

Optical Quality

Grade 1

Type

Desk Stand

Brand

Otsuka

Product Code

BORELOUPE-B

Weight

Attributes

CO Verified

Yes

Handheld

YES

Lens Type

Optical Glass

Illuminated

Yes

Stand

Articulated Swing Arm on G-Clamp Pillar

Long Reach

Yes

Stand Type

Articulated Long Arm G-Clamp

Optical Quality

Grade 1

Type

Desk Stand

Brand

Otsuka

Product Code

BORELOUPE-B

Weight

Description

Otsuka BoreLoupe Industrial Hole and Groove Inspection

Illuminated, Lightbox Desk Magnifier with Interchangable Lenses

Ultra-High Quality, Amazing Flexibility,

Built-to Last

Superb Interchangable Lenses Producing Bright, Clear Images with Optional Polarisation and Anti-Reflection Filters (see below)

DUAL ILLUMINATED

Supplied with Pillar Stand over and bottom illuminated lightbox with extendable horizontal arm and to illuminated tiltable magnifier head

13cm diameter glass lens

2X to 15X with optional lenses (see below)

Total Length 340mm

Vertical Pillar: 230mm x 16mm diameter

Horizontal Arm: 140mm x 13mm diameter

Box Dimensions: 274Dx325Wx110Hmm

Illuminated area on lightbox: 210Dx330Wmm

Bright, long life, FCL 20W energy saver fluorescent ring lamps in head and base

Tiltable and Extendable Head

Weight 5Kg

Suitable for all useOtsuka BoreLoupe Industrial Hole and Groove Inspection

A product developed for the easy and effective inspection of the sides and bottom of of small holes, blind holes, bores and deep-channel grooves.

There are a range of versions each having a different type of arm or holder.
The unique BoreLoupe has an extremely easy to use design with flexibility and immediate installation.
The design incorporates a coaxial lighting system so the illumination is in exactly the same direction as the magnifying optics and the observer's view, tin this way direct observation of the inside of holes and grooves are made fast and simple and it is very intuitive to use.
The switchable magnification lenses of 2x/3x are very high quality and illumination source is a bright LED

OPTIONS:
Polarising Filter for inspecting objects with high specular reflectivity
BORE Loupe-PUL” allows you to increase the magnification with a supplementary lens
Working Distance Extender WDE-B extends working distance for the inspection of the inside of deeper holes
All options are designed to be used with the 3x lens

Lens
Magnification	2x, 3x
Lens dimension (mm)	ɸ40
Lens Material	Optical glass
Working distance (mm)	2x/147, 3x/55
Lens Type	Fixed
AR (anti-reflection) Coated Lens	Not available
Lighting
Light source	LED
AC adapter input voltage	100～240V:50/60 Hz:Plug Type A
Power consumption	1.2 W
Dimming Function	Not available
Body
Product weight	2.0 Kg
Arm length	600 mm
Head Dimensions	112X68X70H (mm)
Possible clamping width (mm)	15～60
Operating temperature range	0℃ ～ 35℃
Dustproof and waterproof protection grade	IP30
